The Worsening Cosmic Ray Situation

March 5, 2018: Cosmic rays are bad–and they’re getting worse.

That’s the conclusion of a new paper just published in the research journal Space Weather. The authors, led by Prof. Nathan Schwadron of the University of New Hampshire, show that radiation from deep space is dangerous and intensifying faster than previously expected.

cr_strip

The story begins four years ago when Schwadron and colleagues first sounded the alarm about cosmic rays. Analyzing data from the Cosmic Ray Telescope for the Effects of Radiation (CRaTER) instrument onboard NASA’s Lunar Reconnaissance Orbiter (LRO), they found that cosmic rays in the Earth-Moon system were peaking at levels never before seen in the Space Age. The worsening radiation environment, they pointed out, was a potential peril to astronauts, curtailing how long they could safely travel through space.

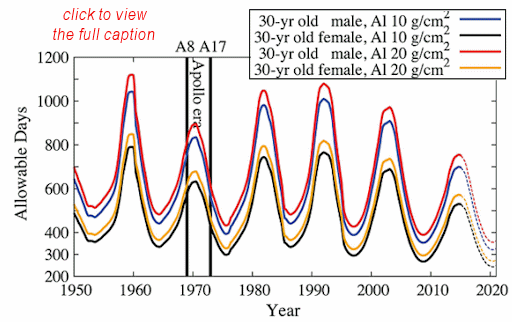

This figure from their original 2014 paper shows the number of days a 30-year old male astronaut flying in a spaceship with 10 g/cm2 of aluminum shielding could go before hitting NASA-mandated radiation limits:

missionduration_strip

In the 1990s, the astronaut could spend 1000 days in interplanetary space. In 2014 … only 700 days. “That’s a huge change,” says Schwadron.

Galactic cosmic rays come from outside the solar system. They are a mixture of high-energy photons and sub-atomic particles accelerated toward Earth by supernova explosions and other violent events in the cosmos. Our first line of defense is the sun:  The sun’s magnetic field and solar wind combine to create a porous ‘shield’ that fends off cosmic rays attempting to enter the solar system. The shielding action of the sun is strongest during Solar Maximum and weakest during Solar Minimum–hence the 11-year rhythm of the mission duration plot above.

The problem is, as the authors note in their new paper, the shield is weakening: “Over the last decade, the solar wind has exhibited low densities and magnetic field strengths, representing anomalous states that have never been observed during the Space Age. As a result of this remarkably weak solar activity, we have also observed the highest fluxes of cosmic rays.”

Back in 2014, Schwadron et al used a leading model of solar activity to predict how bad cosmic rays would become during the next Solar Minimum, now expected in 2019-2020.  “Our previous work suggested a ∼ 20% increase of dose rates from one solar minimum to the next,” says Schwadron. “In fact, we now see that actual dose rates observed by CRaTER in the last 4 years exceed the predictions by ∼ 10%, showing that the radiation environment is worsening even more rapidly than we expected.” In this plot bright green data points show the recent excess:

excess_crater_strip

The data Schwadron et al have been analyzing come from CRaTER on the LRO spacecraft in orbit around the Moon, which is point-blank exposed to any cosmic radiation the sun allows to pass. Here on Earth, we have two additional lines of defense: the magnetic field and atmosphere of our planet. Both mitigate cosmic rays.

But even on Earth the increase is being felt. The students of Earth to Sky Calculus have been launching space weather balloons to the stratosphere almost weekly since 2015. Sensors onboard those balloons show a 13% increase in radiation (X-rays and gamma-rays) penetrating Earth’s atmosphere:

balloon_data_strip

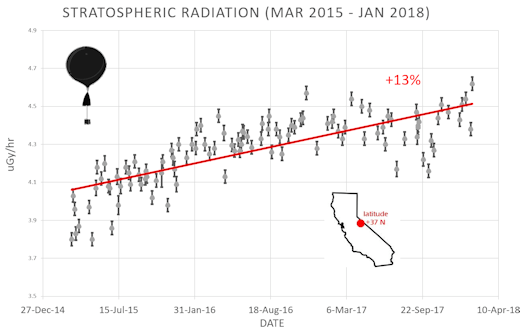

X-rays and gamma-rays detected by these balloons are “secondary cosmic rays,” produced by the crash of primary cosmic rays into Earth’s upper atmosphere. They trace radiation percolating down toward our planet’s surface. The energy range of the sensors, 10 keV to 20 MeV, is similar to that of medical X-ray machines and airport security scanners.

How does this affect us? Cosmic rays penetrate commercial airlines, dosing passengers and flight crews so much that pilots are classified by the International Commission on Radiological Protection as occupational radiation workers. Some research shows that cosmic rays can seed clouds and trigger, potentially altering weather and climate. Furthermore, there are studies ( #1, #2, #3, #4) linking cosmic rays with cardiac arrhythmias in the general population.

Cosmic rays will intensify even more in the years ahead as the sun plunges toward what may be the deepest Solar Minimum in more than a century. Stay tuned for updates.

References:

Schwadron, N. A., et al (2014), Does the worsening galactic cosmic radiation environment observed by CRaTER preclude future manned deep space exploration?, Space Weather, 12, 622–632, doi:10.1002/2014SW001084.

Schwadron, N. A., et al (2018), Update on the worsening particle radiation environment observed by CRaTER and implications for future human deep-space exploration, Space Weather, doi: 10.1002/2017SW001803.



Atmospheric Radiation is Increasing

Dec. 9, 2017: Since the spring of 2015, Spaceweather.com and the students of Earth to Sky Calculus have been flying balloons to the stratosphere over California to measure cosmic rays. Soon after our monitoring program began, we quickly realized that radiation levels are increasing. Why? The main reason is the solar cycle. In recent years, sunspot counts have plummeted as the sun’s magnetic field weakens. This has allowed more cosmic rays from deep space to penetrate the solar system. As 2017 winds down, our latest measurements show the radiation increase continuing apace–with an interesting exception, circled in yellow:

In Sept. 2017, the quiet sun surprised space weather forecasters with a sudden outburst of explosive activity. On Sept. 3rd, a huge sunspot appeared. In the week that followed, it unleashed the strongest solar flare in more than a decade (X9-class), hurled a powerful CME toward Earth, and sparked a severe geomagnetic storm (G4-class) with Northern Lights appearing as far south as Arkansas. During the storm we quickened the pace of balloon launches and found radiation dropping to levels we hadn’t seen since 2015. The flurry of solar flares and CMEs actually pushed some cosmic rays away from Earth.

Interestingly, after the sun’s outburst, radiation levels in the stratosphere took more than 2 months to fully rebound. Now they are back on track, increasing steadily as the quiet sun resumes its progress toward Solar Minimum. The solar cycle is not expected to hit rock bottom until 2019 or 2020, so cosmic rays should continue to increase, significantly, in the months and years ahead. Stay tuned for updates as our balloons continue to fly.

Technical note: The radiation sensors onboard our helium balloons detect X-rays and gamma-rays in the energy range 10 keV to 20 MeV. These energies, which span the range of medical X-ray machines and airport security scanners, trace secondary cosmic rays, the spray of debris created when primary cosmic rays from deep space hit the top of Earth’s atmosphere.

CME Sweeps Aside Cosmic Rays

July 18,2017: On July 16th, a CME hit Earth’s magnetic field, sparking two days of geomagnetic storms and beautiful southern auroras. The solar storm cloud also swept aside some of the cosmic rays currently surrounding Earth. Spaceweather.com and the students of Earth to Sky Calculus launched a space weather balloon to the stratosphere hours after the CME arrived. We detected a 7% decrease in X-rays and gamma-rays (two tracers of secondary cosmic rays). Neutron monitors in the Arctic and Antarctic recorded similar decrements. For instance, these data from the Bartol Research Institute show a nearly 8% drop in cosmic ray neutrons reaching the South Pole:

This is called a “Forbush Decrease,” named after physicist Scott E. Forbush who first described it in the 20th century. Wherever CMEs go, cosmic rays are deflected by magnetic fields inside the solar storm clouds. As a result, when solar activity is high, cosmic radiation around Earth is relatively low–a yin-yang relationship that holds throughout all phases of the solar cycle.

Lately, cosmic rays around Earth have been intensifying as the solar cycle plunges toward minimum. The CME of July 16th reversed that trend–but only for a few days. Solar activity has returned to low levels and cosmic rays are on the rise again.

Why do we care about cosmic rays? For one thing, they penetrate commercial airlines, dosing passengers and flight crews so much that pilots are classified as occupational radiation workers. Some research shows that cosmic rays can seed clouds and trigger lightning, potentially altering weather and climate. Furthermore, there are studies ( #1, #2, #3, #4) linking cosmic rays with cardiac arrhythmias in the general population.

Cosmic Rays Intensify: May 2017

May 7, 2017: As the sunspot cycle declines, we expect cosmic rays to increase. Is this actually happening? The answer is “yes.” Spaceweather.com and the students of Earth to Sky Calculus have been monitoring radiation levels in the stratosphere with frequent high-altitude balloon flights over California. Here are the latest results, current as of May 6, 2017:

The data show cosmic ray levels intensifying with an approximately 13% increase since March 2015.

Cosmic rays are high-energy photons and subatomic particles accelerated in our direction by distant supernovas and other violent events in the Milky Way. Usually, cosmic rays are held at bay by the sun’s magnetic field, which envelops and protects all the planets in the Solar System. But the sun’s magnetic shield is weakening in 2017 as the solar cycle shifts from Solar Maximum to Solar Minimum. More and more cosmic rays are therefore reaching our planet.

How does this affect us? Cosmic rays penetrate commercial airlines, dosing passengers and flight crews enough that pilots are classified as occupational radiation workers. Some research shows that cosmic rays can seed clouds and trigger lightning, potentially altering weather and climate. Furthermore, there are studies ( #1, #2, #3, #4) linking cosmic rays with cardiac arrhythmias in the general population.

The sensors we send to the stratosphere measure X-rays and gamma-rays, which are produced by the crash of primary cosmic rays into Earth’s atmosphere. The energy range of the sensors, 10 keV to 20 MeV, is similar to that of medical X-ray machines and airport security scanners.

Neutrons on a Plane

March 18, 2017: Among researchers, it is well known that air travelers are exposed to cosmic rays. High-energy particles and photons from deep space penetrate Earth’s atmosphere and go right through the hulls of commercial aircraft. This has prompted the International Commission on Radiological Protection (ICRP) to classify pilots and flight attendants as occupational radiation workers.

Many studies of this problem focus on ionizing radiation such as x-rays and gamma-rays. On March 16th we turned the tables and measured neutrons instead. During a 12-hour flight from Stockholm to Los Angeles, Spaceweather.com and the students of Earth to Sky Calculus used bubble chambers to monitor neutron activity inside a Scandinavian Airlines jetliner.

In the photo above, taken 35,000 feet above Greenland, each bubble shows where a neutron passed through the chamber and vaporized a superheated droplet. By the time the long flight was over, we measured almost 20 uSv (microsieverts) of radiation from neutrons–similar to the dose from a panoramic X-ray at your dentist’s office. This confirms that neutrons are an important form of aviation radiation relevant to both air travelers and future space tourists.

Where do these neutrons come from? Mainly, they are secondary cosmic rays. When primary cosmic rays from deep space hit Earth’s atmosphere, they produce a spray of secondary particles including neutrons, protons, alpha particles, and other species. Cosmic ray neutrons can reach the ground; indeed, researchers routinely use neutron counters on Earth’s surface to monitor cosmic ray activity above the atmosphere. Now we’re doing the same thing onboard airplanes.

Earlier in the week, we flew these bubble chambers to the Arctic stratosphere using a space weather balloon. Interestingly, the 12-hour plane flight yielded ~6 times more neutrons than the shorter (2 hour) but far higher (97,000 ft) balloon flight to the stratosphere. What does it mean? We’re still analyzing the data and will have more insights to share in the days ahead. Stay tuned!

Arctic Space Weather Balloon Launch

March 3, 2017: Spaceweather.com is going to Sweden–and we’re taking a team of student researchers from Earth to Sky Calculus with us. For a week beginning on March 9th we plan to launch a series of space weather balloons equipped with cosmic ray sensors and cameras into the stratosphere above the Arctic Circle. At the same time, Earth to Sky launch teams in Chile and California will be sending up identical payloads, forming an intercontinental balloon network:

We’re doing this for three reasons:

1. To understand Earth’s changing radiation environment: Regular monitoring of the stratosphere over California shows that cosmic rays have intensified more than 10% since 2015.  Because of a recent decline in the solar cycle, more and more cosmic rays are reaching the inner solar system and penetrating the atmosphere of our planet. Earth’s magnetic field should protect us against these rays, but geomagnetism is weakening. Globally, Earth’s magnetic field has declined in strength by 10% since the 19th century with changes accelerating in recent years, according to measurements by Europe’s SWARM satellites. To understand Earth’s global response to these changes, we must launch balloons and sample radiation from widely-spaced locations.  The upcoming network launch will span three continents, more than 14,000 km of linear distance, and 90+ degrees of latitude.


Above: Satellite data show that Earth’s magnetic field is changing: full story.

2. To photograph the Northern Lights: We will be launching balloons from Abisko, Sweden, 250 km inside the Arctic Circle. Abisko is famous for spectacular auroras. One of our payloads will carry a low-light camera capable of photographing these lights from the stratosphere. Even at 120,000 feet, the balloon will be well below the auroras, but we will be a lot closer than any camera on the ground

3. To sample polar stratospheric clouds: During winter months, the stratosphere above the Arctic Circle sometimes fills with icy clouds so colorful, they are likened to the aurora borealis. Polar stratospheric clouds (PSCs) are a sign of extremely cold temperatures in the stratosphere and some types of PSCs are responsible for ozone destruction. Our space weather balloons can fly right through these clouds, sampling their temperature, pressure, and ambient levels of radiation.  We can also photograph them from the inside–a possible first!


Above: Polar stratospheric clouds over Kiruna, Sweden, on Feb. 14. Credit: Mia Stålnacke

Stay tuned for daily updates beginning March 9th.

Neutrons in the Stratosphere

Feb. 17, 2017:  In a joint operation on Feb.12th, the students of Earth to Sky Calculus and their sister club Earth to Sky Maritime launched a neutron counter to the stratosphere onboard a high altitude balloon. Neutrons are an important form of cosmic radiation because they provide much of the biologically effective radiation dose at altitudes of interest to aviation and space tourism. How are these particles distributed through our atmosphere? This is what we wanted to find out.

We’ve just finished reducing the data and can report that the experiment was a success. Neutrons were detected throughout the 2 hour flight covering altitudes from ground level to 113,200 ft:

This first data set shows that neutrons, like gamma rays, peak at the entrance to the stratosphere in a layer known as the Regener-Pfotzer Maximum. Moreover, neutron counts are significantly elevated not only in the stratosphere, but also at lower altitudes where planes fly (20,000 ft to 45,000 ft)–something to think about the next time you buy an airline ticket.

We’ve been monitoring cosmic rays in the atmosphere for more than two years, and find that deep space radiation has been intensifying. Previous payloads measured only X-rays and gamma-rays, however. The addition of a neutron counter to the payload is a major upgrade, providing a more complete picture of the radiation environment. Stay tuned for updates as we improve our technique and gather more data in future flights.

Radiation Clouds at Aviation Altitudes

Jan. 20, 2017: A new study published in the peer-reviewed journal Space Weather reports the discovery of radiation “clouds” at aviation altitudes. When airplanes fly through these clouds, dose rates of cosmic radiation normally absorbed by air travelers can double or more.

“We have flown radiation sensors onboard 264 research flights at altitudes as high as 17.3 km (56,700 ft) from 2013 to 2017,” says Kent Tobiska, lead author of the paper and PI of the NASA-supported program Automated Radiation Measurements for Aerospace Safety (ARMAS). “On at least six occasions, our sensors have recorded surges in ionizing radiation that we interpret as analogous to localized clouds.”

The fact that air travelers absorb radiation is not news.  Researchers have long known that cosmic rays crashing into Earth’s atmosphere create a spray of secondary particles such as neutrons, protons, electrons, X-rays and gamma-rays that penetrate aircraft.  100,000 mile frequent flyers absorb as much radiation as 20 chest X-rays—and even a single flight across the USA can expose a traveler to more radiation than a dental X-ray.

Conventional wisdom says that dose rates should vary smoothly with latitude and longitude and the height of the aircraft.  Any changes as a plane navigates airspace should be gradual.  Tobiska and colleagues have found something quite different, however: Sometimes dose rates skyrocket for no apparent reason.

“We were quite surprised to see this,” says Tobiska.

All of the surges they observed occurred at relatively high latitudes, well above 50 degrees in both hemispheres. One example offered in their paper is typical: On Oct 3, 2015, an NSF/NCAR research aircraft took off from southern Chile and flew south to measure the thickness of the Antarctic ice shelf.  Onboard, the ARMAS flight module recorded a 2x increase in ionizing radiation for about 30 minutes while the plane flew 11 km (36,000 feet) over the Antarctic Peninsula.  No solar storm was in progress.  The plane did not abruptly change direction or altitude.  Nevertheless, the ambient radiation environment changed sharply. Similar episodes have occurred off the coast of Washington state.

Above: Radiation measurements made by ARMAS while flying over Antarctica. The colored points are from ARMAS. The black points are from a NASA computer model (NAIRAS) predicting radiation dose rates. Throughout the flight, ARMAS observed higher dose rates than predicted by the model, including a surge highlighted in pink.

What’s going on?

“We’re not sure,” says Tobiska, “but we have an idea.”

Earth’s magnetic field, he explains, traps many cosmic rays and solar energetic particles in structures called “magnetic bottles.”  These bottles can be leaky.  Even minor gusts of solar wind can cause the trapped particles to squirt out the ends of the bottle, sending beams of particles down toward the Earth below.

“Basically, we think we might be flying through some of these leaky particle beams,” says Tobiska.

Tobiska notes that a team of South Korean researchers has observed similar variations in radiation while flying sensors onboard a military aircraft near the border between the two Koreas (Lee et al 2015).  If the phenomena are the same, the Korean measurements would suggest that “radiation clouds” may exist at middle latitudes, too.

The ARMAS program has a busy flight schedule in 2017. “We’ll be looking carefully for more ‘clouds’ as we continue to characterize the radiation environment at aviation altitudes,” says Tobiska.

Stay tuned for updates and, meanwhile, read Tobiska et al’s original research at this URL:  http://onlinelibrary.wiley.com/doi/10.1002/2016SW001419/abstract

Sunspot Cycle at Lowest Level in 5 Years

Nov. 15, 2016: The sun has looked remarkably blank lately, with few dark cores interrupting the featureless solar disk.  This is a sign that Solar Minimum is coming.  Indeed, sunspot counts have just reached their lowest level since 2011. With respect to the sunspot cycle, you are here:

The solar cycle is like a pendulum, swinging back and forth between periods of high and low sunspot number every 11 years. These data from NOAA show that the pendulum is swinging toward low sunspot numbers even faster than expected. (The red line is the forecast; black dots are actual measurements.). Given the current progression, forecasters expect the cycle to bottom out with a deep Solar Minimum in 2019-2020.

Solar Minimum is widely misunderstood.  Many people think it brings a period of dull quiet. In fact, space weather changes in interesting ways. For instance, as the extreme ultraviolet output of the sun decreases, the upper atmosphere of Earth cools and collapses. This allows space junk to accumulate around our planet. Also, the heliosphere shrinks, bringing interstellar space closer to Earth; galactic cosmic rays penetrate the inner solar system and our atmosphere with relative ease. (More on this below.) Meanwhile, geomagnetic storms and auroras will continue–caused mainly by solar wind streams instead of CMEs. Indeed, Solar Minimum is coming, but it won’t be dull.

COSMIC RAYS CONTINUE TO INTENSIFY: As the sunspot cycle declines, we expect cosmic rays to increase. Is this actually happening? The answer is “yes.” Spaceweather.com and the students of Earth to Sky Calculus have been monitoring radiation levels in the stratosphere with frequent high-altitude balloon flights over California. Here are the latest results, current as of Nov. 11, 2016:

Data show that cosmic ray levels are intensifying with an 11% increase since March 2015.

Cosmic rays are high-energy photons and subatomic particles accelerated in our direction by distant supernovas and other violent events in the Milky Way. Usually, cosmic rays are held at bay by the sun’s magnetic field, which envelops and protects all the planets in the Solar System. But the sun’s magnetic shield is weakening as the solar cycle shifts from Solar Max to Solar Minimum. As the sunspot cycle goes down, cosmic rays go up.

The sensors we send to the stratosphere measure X-rays and gamma-rays which are produced by the crash of primary cosmic rays into Earth’s atmosphere. In this way we are able to track increasing levels of radiation. The increase is expected to continue for years to come as solar activity plunges toward a deep Solar Minimum in 2019-2020.

Recently, we have expanded the scope of our measurements beyond California with launch sites in three continents: North America, South America and soon above the Arctic Circle in Europe. This Intercontinental Space Weather Balloon Network will allow us to probe the variable protection we receive from Earth’s magnetic field and atmosphere as a function of location around the globe.

Intercontinental Space Weather Balloon Network

For the past 2 years, Spaceweather.com and the students of Earth to Sky Calculus have been launching “space weather balloons” to measure cosmic rays in the atmosphere.  Regular flights over California show that atmospheric radiation is intensifying in response to changes in the solar cycle.  Now, our monitoring program is going global.  In recent months we have been developing launch sites in multiple US states as well as South America and Europe. This is what the International Space Weather Ballooning Network looks like in October 2016:

Recent additions expand our coverage north of the Arctic Circle (Sweden) and closer to the core of the South Atlantic Anomaly (Argentina).  We also hope to add a site in Antarctica in 2018.

The purpose of launching balloons from so many places is to map out the distribution of cosmic rays around our planet. A single launch site is simply not enough to reveal the nonuniform shielding of our planet’s magnetic field and the complicated response of our atmosphere to changes in solar activity.

Our first test of the network validated these ideas. During a 48 hour period from August 20th-22nd we launched 4 balloons in quick succession from southern Chile, California, Oregon, and Washington. The ascending payloads sampled atmospheric radiation (X-rays and gamma-rays) from ground level to the stratosphere over a geographical range of more than 10,000 km. Here are the results:

The curves show radiation levels vs. altitude for each of the four sites. Numbers in parentheses are magnetic latitude–a measure of distance from Earth’s magnetic equator.

At a glance we can see that atmospheric radiation is a strong function of magnetic latitude. Washington State at +53o has more than twice the amount of radiation as southern Chile at -29o–despite the fact that the Chilean balloon flew into the outskirts of the South Atlantic Anomaly. Clearly, Earth’s magnetic field provides very uneven protection against cosmic rays.

To explore these findings further, we are planning additional network launches every month from now on, adding new sites as often as possible. A launch from inside the Arctic Circle in January 2017 is highly anticipated. Stay tuned for updates from the Intercontinental SWx Balloon Network.
