Dramatic Ground-based Images of DART’s Asteroid Strike

Sept. 27, 2022: On Monday, Sept. 26th, NASA’s DART spacecraft hit asteroid Dimorphos. Surprising even NASA, ground-based telescopes had no trouble seeing the impact. Astronomers with the Asteroid Terrestrial-impact Last Alert System (ATLAS) in Hawaii recorded a bright cloud of debris:

This was the result of the 1,340-pound spacecraft plunging into Dimorphos at 14,000 mph. Most of the debris is probably asteroid dust, but some of DART may be in there, too. A similar video was recorded by the 1-meter Lesedi telescope in South Africa.

Mission scientists say DART hit the asteroid less than 17 meters off center. Think about that: 17 meters off at a distance of 11 million kilometers. NASA still has the right stuff.

Now that the dust has cleared, astronomers are monitoring Dimorphos’s orbit to find out whether or not it has changed in response to the strike. Even a slight shift would prove that human tech can alter an asteroid’s trajectory–a possible strategy for future Planetary Defense.

more images: from Gianluca Masi using the Klein Karoo Observatory in South Africa; from Ernesto Guido using a remotely controlled 0.61-meter telescope in Chile; from Eliot Herman using a remotely controlled telescope in Siding Spring Australia

The Starlink Incident — Revisited

Sept. 13, 2022: A minor geomagnetic storm is supposed to be minor. That’s why even experts were surprised on Feb. 4, 2022, when dozens of Starlink satellites started falling out of the sky. A weak CME had hit Earth’s magnetic field, and the resulting G1-class (minor) storm was bringing them down:

Above: A Starlink satellite falls from the sky over Puerto Rico on Feb. 7, 2022. Credit: the Sociedad de Astronomia del Caribe

How could this happen? A new paper published in the research journal Space Weather provides the answer.

“Although it was only ‘minor,’ the storm pumped almost 1200 gigawatts of energy into Earth’s atmosphere,” explains lead author Tong Dang of the University of Science and Technology of China. “This extra energy heated Earth’s upper atmosphere and sharply increased aerodynamic drag on the satellites.”

SpaceX launched the satellites from Cape Canaveral on Feb. 3, 2022. Forty-nine (49) Starlinks were crowded inside the Falcon 9 rocket; less than a quarter would survive.

Left: An Earth-directed CME implicated in the Starlink Incident. Right: Geomagnetic indices showing how two minor geomagnetic storms sandwiched the launch of the Starlink satellites.

As was SpaceX’s practice at the time, the satellites were deployed at an altitude of 210 km–their first stop en route to an operational altitude near 600 km. In the satellite business, 210 km is considered to be low, barely above the atmosphere. SpaceX starts there in case any satellite malfunctions after launch. From 210 km, a “bad sat” can be easily de-orbited.

A little too easily, as it turns out.

Using a physics-based computer model named “TIEGCM,” Dang and colleagues simulated conditions during the storm. As geomagnetic energy heated Earth’s atmosphere, the air density at 210 km increased globally by 20% with “hot spots” as high as 60%.  This movie shows what happened:

Starlink dodged the worst spots. “The satellites did not hit any of the 60% regions,” says Dang. “But that didn’t save them.” The weaker 20% enhancements were enough to bring down 38 out of 49 satellites.

To prevent this from happening again, SpaceX has started launching to 320 km instead of 210 km. Earth’s atmosphere has to reach that much higher to drag the satellites back during a geomagnetic storm. Since the change, more than 1200 additional Starlink satellites have been launched on 24 rockets without incident.

There’s still danger, though. “Air density at 320 km is an order of magnitude less (compared to 210 km), but it’s not completely safe,” cautions Dang’s co-author Jiuhou Lei, also from the University of Science and Technology of China. “During an extreme geomagnetic storm, density could increase from 200% to 800% even at these higher altitudes.”

Extreme storms may be in the offing. Young Solar Cycle 25 is just getting started. The profusion of minor storms we are observing today will intensify in the years ahead especially as we approach Solar Max around 2025.

Elon Musk’s note to self: Check the space weather forecast.

BlueWalker 3 is Huge

Sept. 10, 2022: Later today, SpaceX will launch an unusual satellite: BlueWalker 3. Designed to supply 4G cell phone signals from space, Bluewalker 3 will unfurl a large antenna spanning 64 square meters–the size of a squash court:

This flat surface orbiting 500 kilometers above Earth will reflect a lot of sunlight, which could make the satellite extremely visible to observers on the ground. It could become brighter than the planet Venus, outshining everything in the night sky except the Moon.

While this is only a single satellite for now, Bluewalker’s maker AST SpaceMobile plans to launch more than 100 larger satellites called BlueBirds. These satellites, which could be more than twice the size of BlueWalker 3, would appear even brighter in the sky.

For astronomers, the satellites could create bright streaks across images from ground-based telescope, potentially making them unusable for observing more distant objects.

Should we be concerned? Maybe. First let’s see how bright Bluewalker 3 actually is. It is scheduled to launch from Cape Canaveral on Sept 10th between 9:10 p.m. to 9:20 p.m. EDT. A batch of 34 Starlink satellites will share the ride.

Update: SpaceX successfully launched the huge BlueWalker 3 communications satellite and 34 Starlink satellites on Sept. 10th at 9:20 pm EDT.

This story was brought to you by Spaceweather.com

Dung Beetles Navigate Using the Milky Way — New Results

Sept. 1, 2022: When you hear the words “dung beetle” you probably think of poop. After you read this article, a different picture may come to mind: The Milky Way.

In 2009, entomologists made an astonishing discovery. Nocturnal dung beetles (Scarabaeus satyrus) can navigate using the Milky Way. Although the compound eyes of beetles cannot resolve individual stars, this species can see the Milky Way as a stripe across the sky and perhaps even sense features within it such as the galactic center and lanes of stardust.

“Currently, dung beetles are the only animals we know of that use the Milky Way for reliable orientation,” says James Foster of the University of Konstanz in Germany. “They are excellent little astronomers.”

Above: A nocturnal dung beetle at work. Photo credit: Chris Collingridge © 2017

A quick review of dung beetles: They are nature’s sanitation crew. Whenever a pile of brown material is dumped in the forest, dung beetles converge to clean up the mess. Each beetle sculpts a dung ball, which they roll away in a straight line. Far from the pile, the ball will be buried and eaten, and sometimes used as bedding for dung beetle eggs.

It sounds simple, but there’s a problem. Dung beetles are combative. If two beetles leaving the pile bump into one other, they can get into a brutal wrestling match often ending with overhead judo-style full body throws. Wandering around in circles (like lost humans do) boosts the odds of a fight even more. Dung beetles have therefore evolved the ability to navigate to safety in quick straight lines.

During the day they steer by the sun. Dung beetles can see polarization patterns in the daytime sky, and use these patterns to hold course. A single patch of blue sky is sufficient. The trick works at night, too. Dung beetles are the only known creatures who can see the polarization of moonlight, which is 100 million times weaker than daylight polarization. Studies show that dung beetles can walk straight as accurately at night as during the day, even when the Moon is a faint crescent.

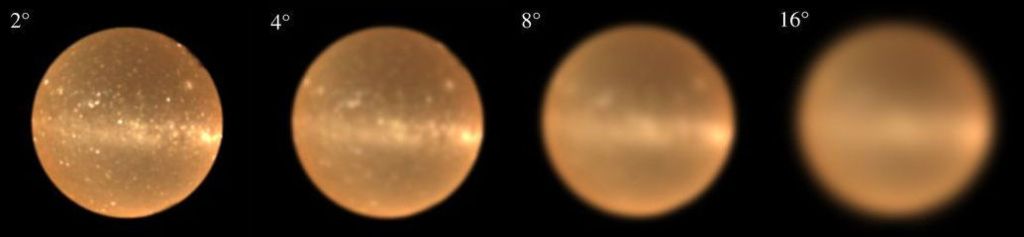

Above: Dung beetle vision blurs the Milky Way, but no one is certain how much. These are four models used in the experiments of James Foster. Models in the 2o to 4o smoothing range seem to best represent how the beetles see the sky.

But what happens when there’s no sun or Moon? In the early 2000s, this question troubled two pioneers of dung beetle research, Eric Warrant and Marie Dacke of Lund University in Sweden. To find the answer, they took some beetles to the planetarium at the University of the Witwatersrand in Johannesburg, South Africa, and projected the Milky Way onto the domed ceiling. The beetles saw it, and navigated.

Their discovery prompted a veritable explosion in dung beetle research. James Foster is a leader in the field, publishing new results every few years.

Foster and colleagues have built a rudimentary planetarium just for dung beetles. It uses LED lights to mimic the Milky Way as beetles see it through their compound eyes. In 2017 they found that dung beetles were able to distinguish between north and south arms of the Milky Way, sensing intensity contrasts as low as 13%.  This threshold puts features such as the galactic center in Sagittarius and the Great Rift in Cygnus theoretically within range of beetle senses.

Next they added city lights to their experiment–and the results  were not good. “Light pollution may be forcing  beetles to abandon the Milky Way as their compass,” worries Foster.

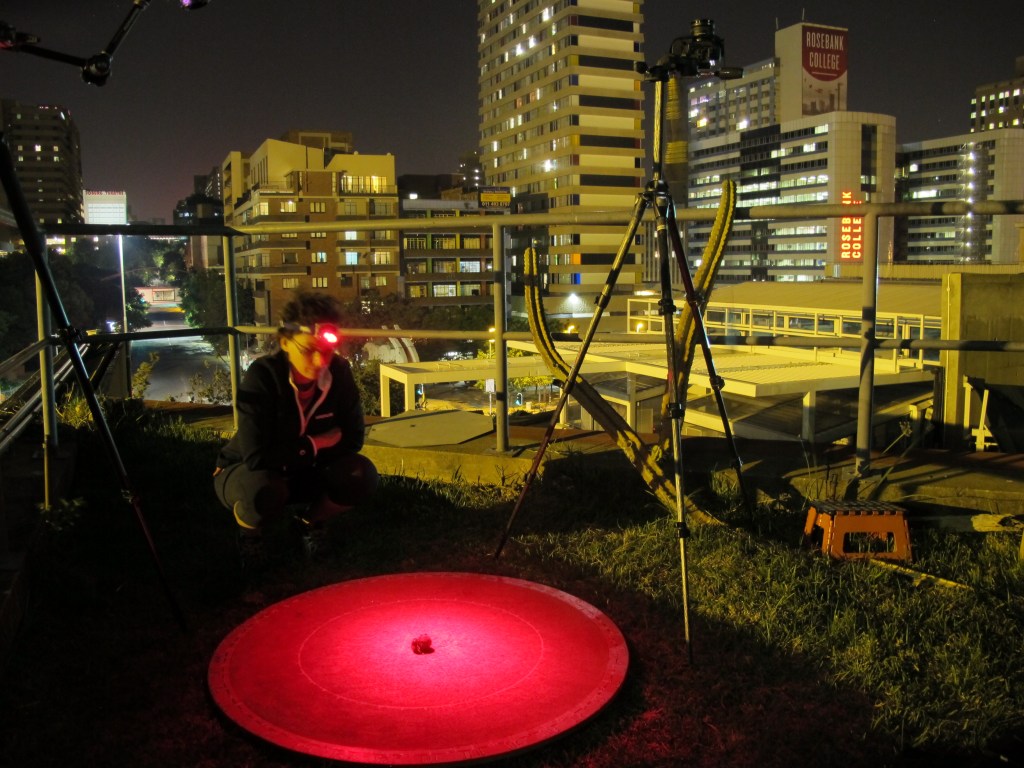

Above: Claudia Tocco, a colleague of James Foster, performing experiments on the roof of the University of the Witwatersrand in central Johannesburg. A dung beetle is at the center of the red-lit arena. Photo credit Marcus Byrne

In a paper published July 2021, Foster’s team described how urban lights wipe out the Milky Way, reduce the polarization of moonlight by 60% to 70%, and “create anthropogenic celestial cues.” The last item is worst of all. Spotlights and brightly lit buildings mesmerize beetles who suddenly ignore the sky and make a beeline for manmade bulbs.

“These beacons draw beetles towards the most hostile regions of their environments,” says Foster. “After rolling their balls some distance, beetles need to find a patch of soft sand where they can dig in. They are unlikely to find that in the immediate vicinity of bright artificial lights, whether in cities or the countryside, since these are usually associated with concrete and tarmac.”

Dung beetles aren’t the only ones. Researchers believe they are only scratching the surface of this field with potentially thousands of species watching the stars. Everything from simple light bulbs to sophisticated satellite mega-constellations may be affecting these members of our ecosystem.

“Dung beetle!” What are you thinking of now?

This story was brought to you by Spaceweather.com

Major Farside CME and Radiation Storm

Sept. 6, 2002: Something just exploded on the farside of the sun. NASA’s STEREO-A spacecraft recorded a magnificent full-halo CME emerging during the late hours of Sept. 5th:

A NASA model of the CME shows it heading away from Earth and directly toward Venus. This will be the second time in a week that Venus has been hammered by a significant solar storm. An earlier CME struck on Sept. 1st, probably launched by the same farside sunspot.

“This is no run of the mill event,” says George Ho of the Johns Hopkins Applied Physics Lab. “Many science papers will be studying this for years to come.”

Ho is the principal investigator for an energetic particle detector onboard Europe’s Solar Orbiter spacecraft–and he is getting a lot of data right now. Solar Orbiter just performed a close flyby of Venus (only 6420 km away) to adjust its orbit around the sun. It is in the perfect position to observe the storm.

This plot shows a wave of energetic particles washing over the spacecraft:

Above: Data from Solar Orbiter’s EPD/Suprathermal Ion Spectrograph. These are quick-look data; they have not been checked for accuracy and are subject to revision

“I can safely say the Sept. 5th event is one of the largest (if not THE largest) Solar Energetic Particle (SEP) storms that we have seen so far since Solar Orbiter launched in 2020,” says Ho. “It is at least an order of magnitude stronger than the radiation storm from last week’s CME.”

“In fact, the >10 MeV and >50 MeV particle intensity has not subsided since the beginning of the storm yesterday,” adds Ho. “This is indicative of a very fast and powerful interplanetary shock, and the inner heliosphere may be filled with these high-energy particles for a long time. I think I’ve only seen couple of these in the last couple solar cycles.”

Earth is not affected by the storm, which is happening on the opposite side of the sun. However, we may not be safe from its source. The underlying explosion almost certainly happened in the magnetic canopy of AR3088, an active sunspot that popped up on the Earthside of the sun in August. It is now transiting the farside, apparently bigger and angrier than before. The sun’s rotation will turn AR3088 toward us again in little more than a week, putting Earth back in the line of fire. Stay tuned.Solar flare alerts: SMS Text

This story was brought to you by Spaceweather.com
