Two Solar Cycles Active at Once

April 27, 2020: Today, there are two sunspots in the sun’s southern hemisphere. Their magnetic polarity reveals something interesting: They come from different solar cycles. Take a look at this magnetic map of the sun’s surface (with sunspots inset) from NASA’s Solar Dynamics Observatory:

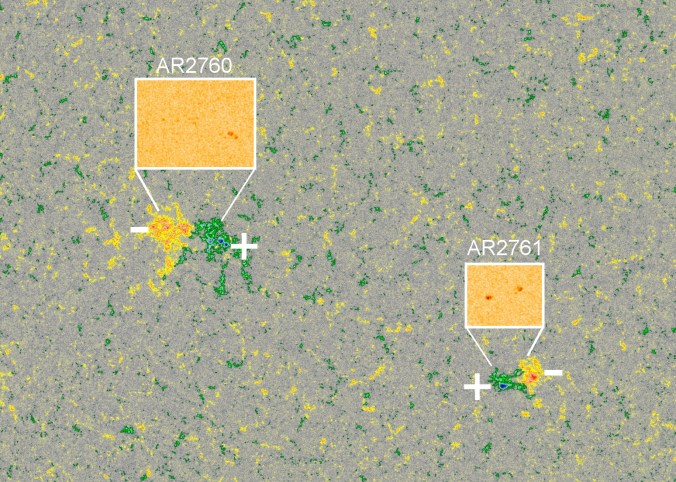

One sunspot (AR2760) belongs to old Solar Cycle 24, while the other (AR2761) belongs to new Solar Cycle 25. We know this because of Hale’s polarity law. AR2760 is +/- while AR2761 is -/+, reversed signs that mark them as belonging to different cycles.

This is actually normal. Solar cycles always overlap at their boundaries, sprinkling Solar Minimum with a mixture of old- and new-cycle sunspots. Sometimes, like today, they pop up simultaneously. We might see more such combinations in the months ahead as we slowly grind our way through one of the deepest Solar Minima in a century.

The simultaneous appearance of two solar cycles suggests a type of temporary balance. In fact, the tipping point may have already been reached. So far this year, there have been 7 numbered sunspots. Five of them (71%) have come from Solar Cycle 25. This compares to only 17% in 2019 and 0% in 2018. Slowly but surely, Solar Cycle 25 is coming to life.

Realtime Space Weather Photo Gallery
Free: Newsletter

Reflected Tsunamis and Space Weather

April 28, 2020: When the Earth trembles, even the edge of space moves. Researchers  have known for decades that earthquakes and tsunamis send waves of air pressure to the very top of Earth’s atmosphere. Up there, in the ionosphere, the waves scramble GPS signals and interfere with radio communications much like solar flares do. Earthquakes, it turns out, can mimic space weather.

A new paper published in the research journal Space Weather shows that earthquakes and tsunamis may, in fact, affect the ionosphere much more than previously thought.

“On 11 March 2011, a magnitude 9.0 earthquake occurred near the east coast of Honshu, Japan, unleashing a savage tsunami as well as unprecedented ripples at the space‐atmosphere interaction region,” report the authors, led by Min-Yang Chou of the University Corporation for Atmospheric Research (UCAR) in Boulder, CO.

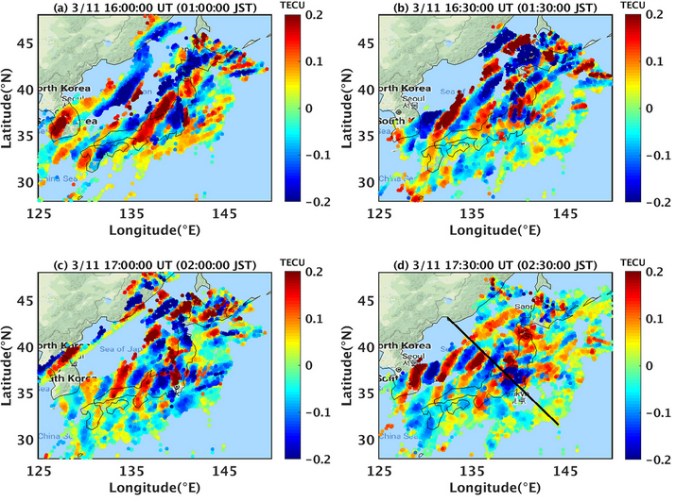

Above: Ionospheric disturbances over Japan caused by the March 11, 2011, earthquake and tsunami. The colors denote total electron content (TEC) measurements from ground-based global positioning receivers. This is Figure 6 from “The Persistent Ionospheric Responses Over Japan After the Impact of the 2011 Tohoku Earthquake,” by Min-Yang Chou.

Using satellites and ground-based GPS receivers, Chou and colleagues took a close look at what happened to the ionosphere over Japan in the aftermath of the earthquake. As expected, it was disturbed. Surprisingly, though, the ionospheric disturbances didn’t peter out after the initial quake and tsunami; they kept going for many more hours.

The reason: Reflected tsunamis.

“The tsunami was reflected by multiple sources such as seamounts, islands and ridges,” says Chou. “These reflections created multiple concentric tsunami wave patterns in the ocean.” Bouncing back and forth across the Pacific, reflected tsunamis kept the ionosphere above Japan disturbed for as much as 46 hours.

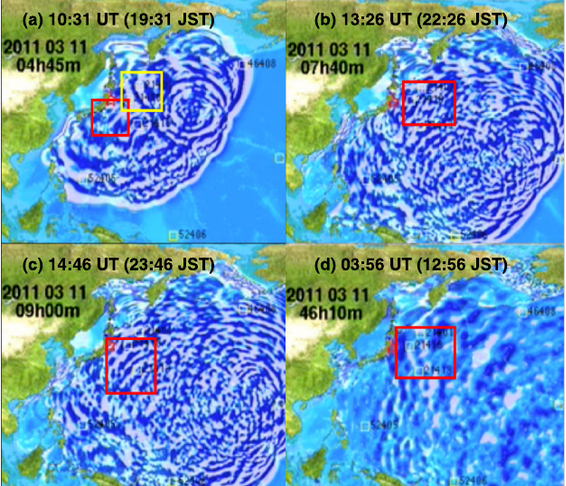

Reflected tsunami waves backscattered by (a-c) seafloor topography on 11 March 2011 and backscattered by (d) South America on 13 March 2011. From the models of Tang et al. (2012)

Researchers once thought that only the sun could disturb the ionosphere so much. Solar flares bathe the top of our atmosphere with ultraviolet and X-radiation, sending waves of ionization rippling through the ionosphere. Sound familiar? Earthquakes and tsunamis have the same effect. In fact, Chou says, the disturbances over Japan were akin to a series of strong X-class solar flares.

In some ways, tsunamis are even worse. The disturbances they produce last for days and, because of reflections, can be very complicated. Reflected waves near Japan in 2011 caused chaotic nighttime “twinkling” of GPS satellite signals–enough to cause some GPS devices to completely lose lock.

As 2020 unfolds, the sun is experiencing one of the deepest Solar Minima of the past century. There are no solar flares. At a time like this, earthquakes and tsunamis rule, mimicking stormy space weather in the absence of the real thing.

Now more than ever, “understanding how natural hazards [such as tsunamis] impact our upper atmosphere and cause variations in the space environment around Earth is crucial,” says Chou.

For more information, read the original research here.

Severe Spring Storms Send Sprite-Lightning to the Edge of Space

April 23, 2020: A series of unusually severe spring storms parading across the southeastern USA has residents taking shelter from golf-ball sized hail and dangerous tornadoes. High above the maelstrom, sprites are dancing. Paul M. Smith of Edmond, Oklahoma, captured these specimens on April 22nd.

“There were tornado warnings and very large hail throughout the night,” says Smith. “I photographed the sprites through a clearing around midnight.”

Sprites are a form of electricity in powerful storm clouds. While regular lightning lances down, sprites leap up. They can reach all the way to the edge of space 90 km or more above Earth’s surface. Spring thunderstorms often produce the year’s first big sprites, and the sightings continue through late summer.

“My camera was pointed toward Oklahoma City,” says Smith, “and the sprites were about 150 miles away.” This radar weather map shows shows the observing geometry:

When observing sprites, this kind of distance is a good thing. It allows a camera to see over the top of the thunderhead into the sprite zone. It also provides a measure of safety, separating the photographer from lightning strikes.

Smith also photographed sprites on Easter Sunday. They towered over a storm in Arkansas that made headlines for its ferocity and destructiveness. “The sprites were so bright, I was able to photograph them in almost-full moonlight,” he says.

This could turn into one of the best sprite seasons on record. Why? Solar Minimum. The sun is currently experiencing one of the deepest minima in 100 years. As the sun’s magnetic field weakens, more cosmic rays from deep space are reaching Earth. Some researchers believe that cosmic rays help sprites get started by creating conductive paths in the atmosphere. Intensifying cosmic rays could produce an unusually spriteful spring.

Are you ready?

Realtime Sprite Photo Gallery
Free: Newsletter

Astronauts Photograph Starlink Satellites from Space

April 20, 2020: For the first time, SpaceX’s controversial Starlink satellites have been photographed by astronauts onboard the International Space Station. Here they are, photo-bombing a display of aurora australis on April 13, 2020:


The ISS was flying over the southern Indian Ocean when the sighting occurred with cameras pointing generally south toward Antarctica. At the time, a minor stream of solar wind was buffeting Earth’s magnetic field, sparking auroras over the frozen continent. The Starlink train stretches all the way from the twilight-blue horizon to the starry sky high above the aurora layer.

Dutch satellite expert Marco Langbroek identified the Starlink satellites and labeled the original NASA image. “These are all objects from the 17 February 2020 launch— a.k.a. ‘Starlink 4,'” Langbroek wrote in his blog.

Starlink is a new venture by SpaceX, which aims to surround Earth with satellites and beam affordable internet to remote locations all over the world. It is controversial because of its potential effect on the night sky. Just after launch, Starlink satellites easily can be seen with the unaided eye, swarming across stars and planets familiar to backyard astronomers. Scott Tucker of Tucson, Arizona, was photographing Venus on the evening of April 17th when this happened:


“I watched 41 Starlink satellites from the most recent launch pass by Venus during late twilight,” says Tucker. “One of them even flared like an Iridium satellite! It got to magnitude -2 for a few seconds.”

Newly-launched Starlink satellites eventually dim as they approach operational orbits 550 km above Earth–but even then they can interfere with research astronomy. Big telescopes have no trouble detecting Starlink satellites no matter how high they go. The fact that SpaceX plans to launch at least 12,000 of them has prompted the International Astronomical Union to sound the alarm.

So far, there are 360 Starlinks into Earth orbit, a tiny fraction of the ultimate total, yet still a large number. Accidental sightings have become so common that we now have an entire photo gallery of Starlink sightings. Browse the collection and see what you think.

Realtime Starlink Photo Gallery
Free: Newsletter

Introducing Comet SWAN

April 15, 2020: Warning: This story may give you a sense of déjà vu. A new comet has been discovered, and in late May it will pass by the sun near the orbit of Mercury. No, it’s not Comet ATLAS (C/2019 Y4), which is currently falling apart on a similar trajectory. Instead, this is Comet SWAN (C/2020 F8):


Michael Mattiazzo of Swan Hill, Victoria, Australia, took the picture on April 13th. “This is a 5 minute exposure through my 11-inch Celestron telescope,” says Mattiazzo. “A visual observation using 15x70mm binoculars gave a magnitude of 8.1.”

Mattiazzo discovered the comet two days earlier when he was looking at data from the Solar and Heliospheric Observatory (SOHO). It suddenly appeared in images from SOHO’s SWAN instrument. “This is my 8th discovery credit for SWAN comets since 2004 and I do check the data on most days,” says Mattiazzo.

Post-discovery images taken by Italian astronomer Ernest Guido and colleagues confirm that the comet is bright (8th magnitude), green, and has a long tail:


“We took this picture on April 11th–the same day Mattiazzo found the comet in SWAN data,” says Guido. “We couldn’t see it from Italy, so we used a remote-controlled 0.1 meter telescope in Australia.”

SOHO’s SWAN instrument was not designed to find comets. Its job is to survey the solar system for hydrogen. When the solar wind blows into a cloud of hydrogen-bearing compounds, the impact produces UV photons that SWAN can photograph.

“For SWAN to see a comet, it means the comet must be producing a fairly significant amount of hydrogen,” explains Karl Battams of the Naval Research Lab in Washington DC. “This is usually in the form of water-ice.”

“It’s extremely likely that Comet SWAN is in ‘outburst’ mode,” he continues. “That is, some major eruption happened to this otherwise small and faint comet, releasing a massive cloud of hydrogen-rich volatiles. SWAN is picking up on this sudden dump of hydrogen into the inner solar system.”


Click to view an interactive preliminary orbit of Comet SWAN. Credit: Gideon van Buitenen

If the outburst continues, Comet SWAN could become visible to the naked eye next month. Preliminary light curves suggest that it could reach 3rd magnitude–dim, but visible without optics. However, Battams, who correctly predicted the demise of Comet ATLAS, is not so sure.

“I doubt that the comet will maintain its current impressive appearance, and will quite possibly fade away soon,” he says. “But we’ve only been viewing it for a couple of days, so no one knows.”

Comet SWAN is currently located in southern skies, best seen by telescopes in Australia, New Zealand, southern Africa and South America. Preliminary orbital elements are available here. Stay tuned for updates.

Fragments of Comet ATLAS

April 13, 2020: There’s no longer any doubt. Comet ATLAS (C/2019 Y4) is falling apart. Around the world, amateur astronomers are beginning to witness the breakup, even imaging individual fragments. Jose de Queiroz photographed 3 pieces on April 11th:


“I took the picture using the 90 cm telescope at Observatory Mirasteilas in Falera, Switzerland,” says de Queiroz. “This is a stacked 20×120 sec exposure.”

Confirming images from the Lulin One-meter Telescope in Taiwan have just been reported in an Astronomer’s Telegram. The observing team, led by Zhong-Yi Lin of Taiwan’s National Central University, estimates that the leading fragment is about 3400 km ahead of the trailing pair.

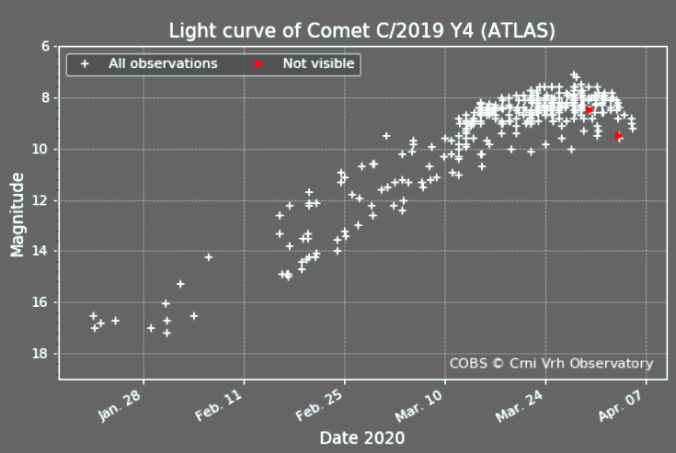

The breakup of Comet ATLAS coincides with a sharp decline in its brightness. The Comet Observation Database shows a drop of two full magnitudes (a factor of more than 6):


These trends suggest that the comet *might* completely dissolve before its close approach to the sun inside the orbit of Mercury at the end of May. “Follow-up observations of C/2019 Y4 (ATLAS), both imaging and spectroscopy, are highly recommended to investigate the cause of this cometary breakup event,” says Lin and colleagues.

Realtime Comet ATLAS Photo Gallery
Free: Newsletter

Where the Power Might Go Out

April 9, 2020: A solar superstorm can make your lights go out. New maps released by the USGS show where the power is most likely to fail: The Denver metropolitan area, the Pacific northwest, the Atlantic seaboard, and a cluster of Midwestern states near the US-Canadian Border. Bright yellow and orange trace the trouble spots across the contiguous USA:


Power companies have long been wary of the sun. Solar storms can cause strong electric currents to flow through commercial power lines–so strong that the lines can’t handle it. Fuses blow, transformers melt, and circuit breakers trip. The most famous geomagnetic power outage happened during a space storm in March 1989 when six million people in Quebec lost power for 9 hours.

Whether or not *your* power goes out during a solar storm depends on two things: (1) The configuration of power lines in your area and (2) the electrical properties of the ground beneath your feet. In areas of more electrically resistive rock, currents struggle to flow through the ground. Instead, they leap up into overhead power lines – a scenario that played out in Quebec in 1989.

The new maps are possible thanks to Earthscope–a National Science Foundation magnetotelluric survey of the upper 2/3rds of the contiguous USA. Earthscope mapped the electrical properties of deep rock and soil on a continent-spanning grid with points about 70 km apart. USGS researchers led by Greg Lucas and Jeffrey Love combined this information with the layout of modern power lines to estimate peak voltages during a century-class storm.

Electric powerlines

Sprawling power lines act like “solar storm antennas,” picking up currents and spreading the problem over a wide area.

They found a huge variation in hazard across the USA. “The largest estimated once-per-century geoelectric field is 27.2 V/km at a site located in Maine, while the lowest estimated once-per-century geoelectric field is 0.02 V/km at a site located in Idaho. That is more than 3 orders of magnitude difference,” they wrote in their research paper “A 100‐year Geoelectric Hazard Analysis for the U.S. High‐Voltage Power Grid.” Notably, some of the most vulnerable regions are near big cities: Denver, Boston, New York, Philadelphia, Baltimore, and Washington, DC.

To complete the hazard map, the researchers are waiting for a new magnetotelluric survey to cover the rest of the USA. It can’t come soon enough. The last “century-class” geomagnetic storm hit in May 1921 … 99 years ago.

Comet ATLAS is Breaking Up

April 6, 2020: Comet ATLAS (C/2019 Y4), what are you doing? New data from astronomers around the world show that the once-promising comet is beginning to fade. For Karl Battams of the Naval Research Lab in Washington DC, it could be a classic case of “I told you so.”


Comet ATLAS on March 28th. Credit: Tim Connolly of Plattsburgh, NY. [More images]

“Quoting myself from March 15th,” says Battams, “‘I wouldn’t be surprised to see Comet ATLAS start to fade rapidly and possibly even disintegrate before reaching the sun.’ I very much hope I’m wrong, but Comet Elenin did something similar several years ago, holding lots of promise and then just… fizzling.”

In recent months, Comet ATLAS galvanized astronomers as it fell toward the sun, skyrocketing in brightness like few comets before it. By late May 2020 it promised to rival Venus in the sunset sky. But recent developments belie that possibility.

On April 6th, astronomers Quanzhi Ye of the University of Maryland) and Qicheng Zhang of Caltech reported new images of Comet ATLAS, in which the comet’s core appears to be elongating–“as would be expected from a major disruption of the nucleus,” they wrote in an Astronomical Telegram.


Images from the 0.6-m Ningbo Education Xinjiang Telescope show a possible fragmentation of ATLAS’s core

“It’s possible that this is the beginning of the end,” says Battams.

Recent measurements of the comet’s position also point to trouble. Battams explains: “The comet’s orbit is now being influenced by ‘non-gravitational’ forces. These forces are the result of gases lifting off the comet nucleus and causing the nucleus to move very slightly in the opposite direction–sort of like a jet engine. Most active comets experience this to some degree, but ATLAS’s non-gravitational forces have kicked in very abruptly and are quite strong. This supports a narrative of a small nucleus being pushed very strongly by extreme outgassing, possibly along with fragmentation.”

“Finally, let’s not forget that ATLAS is a fragment of a larger (unidentified) comet also related to the Great Comet of 1844,” says Battams. “Fragmenting is a family trait for these guys.”


Is Comet ATLAS doomed? Not necessarily. “The frustrating thing about comets is we often don’t know exactly what they’re doing or why they’re doing it. There’s still a chance that Comet ATLAS is just ‘taking a breather’ before another outburst,” says Battams. “But I wouldn’t count on it….”

No matter what happens, amateur astronomers are encouraged to monitor developments. Submit your images here.
